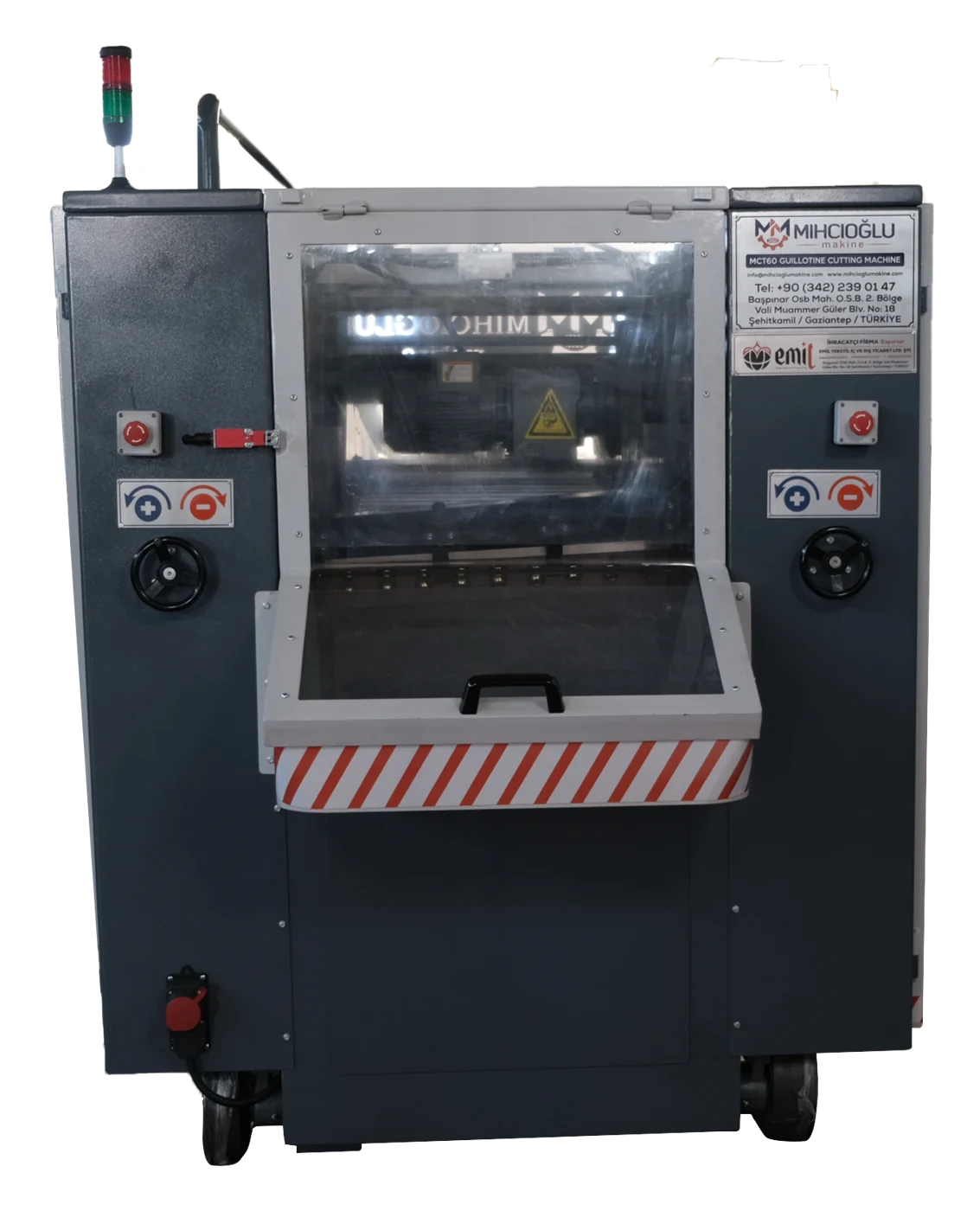

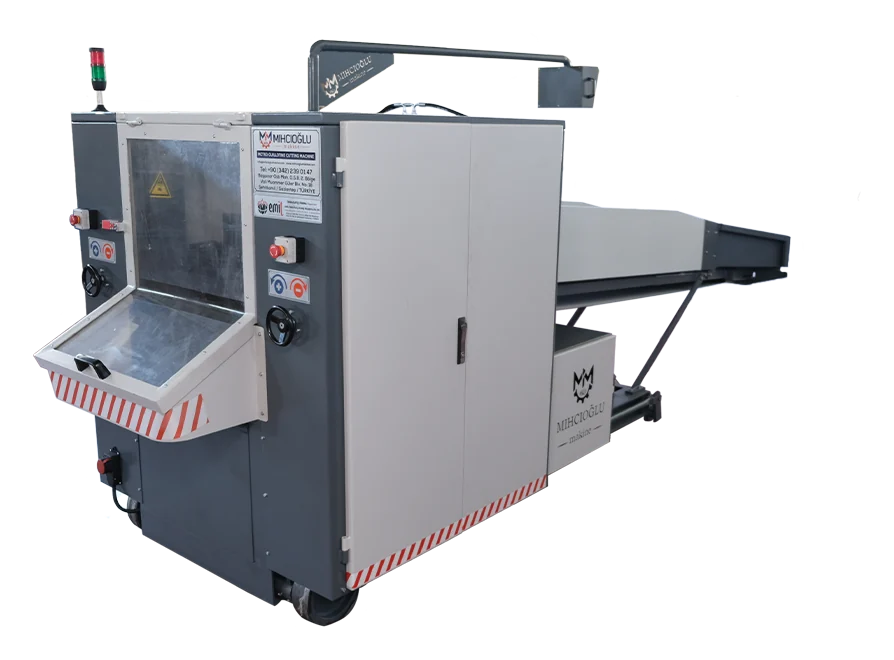

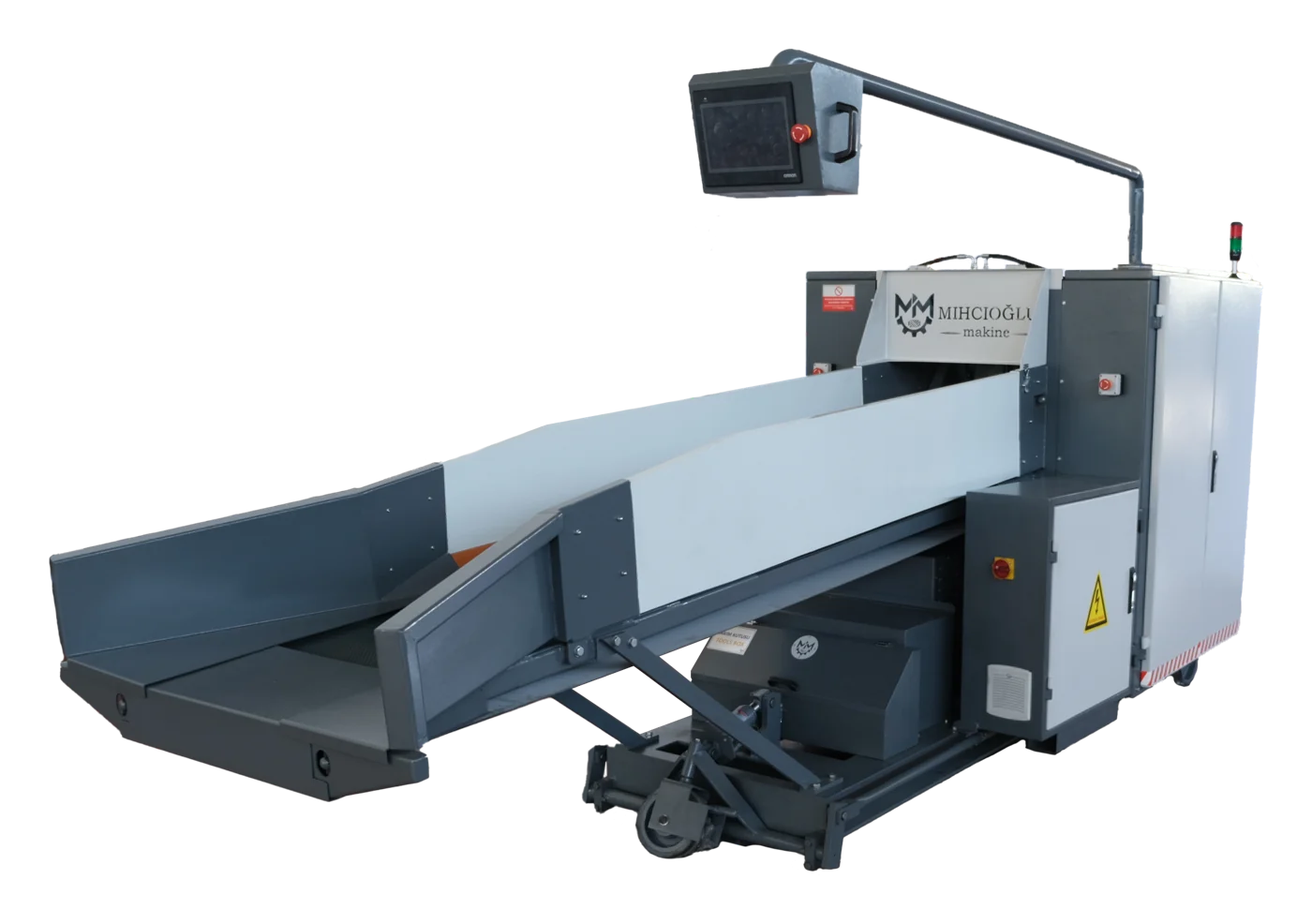

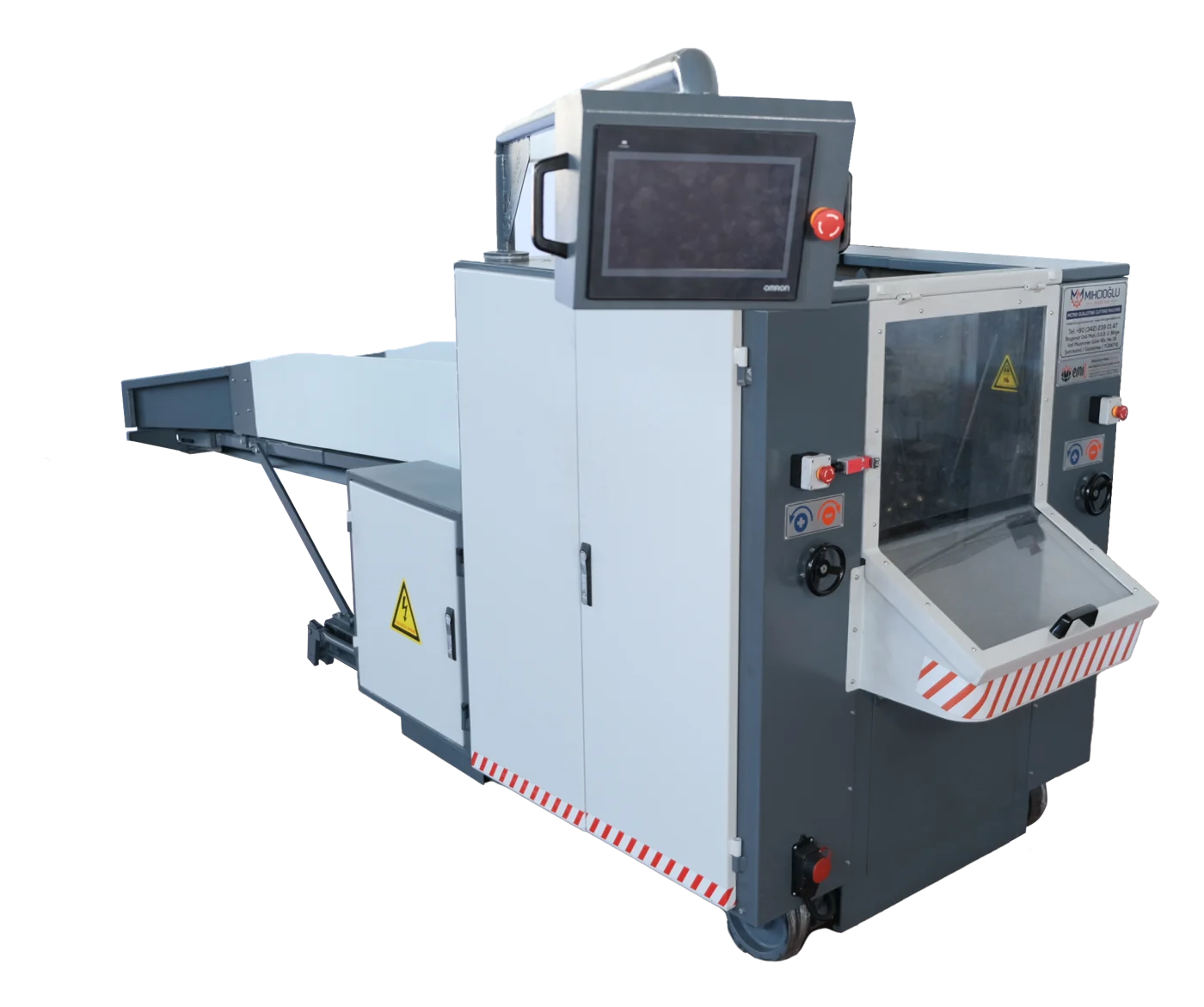

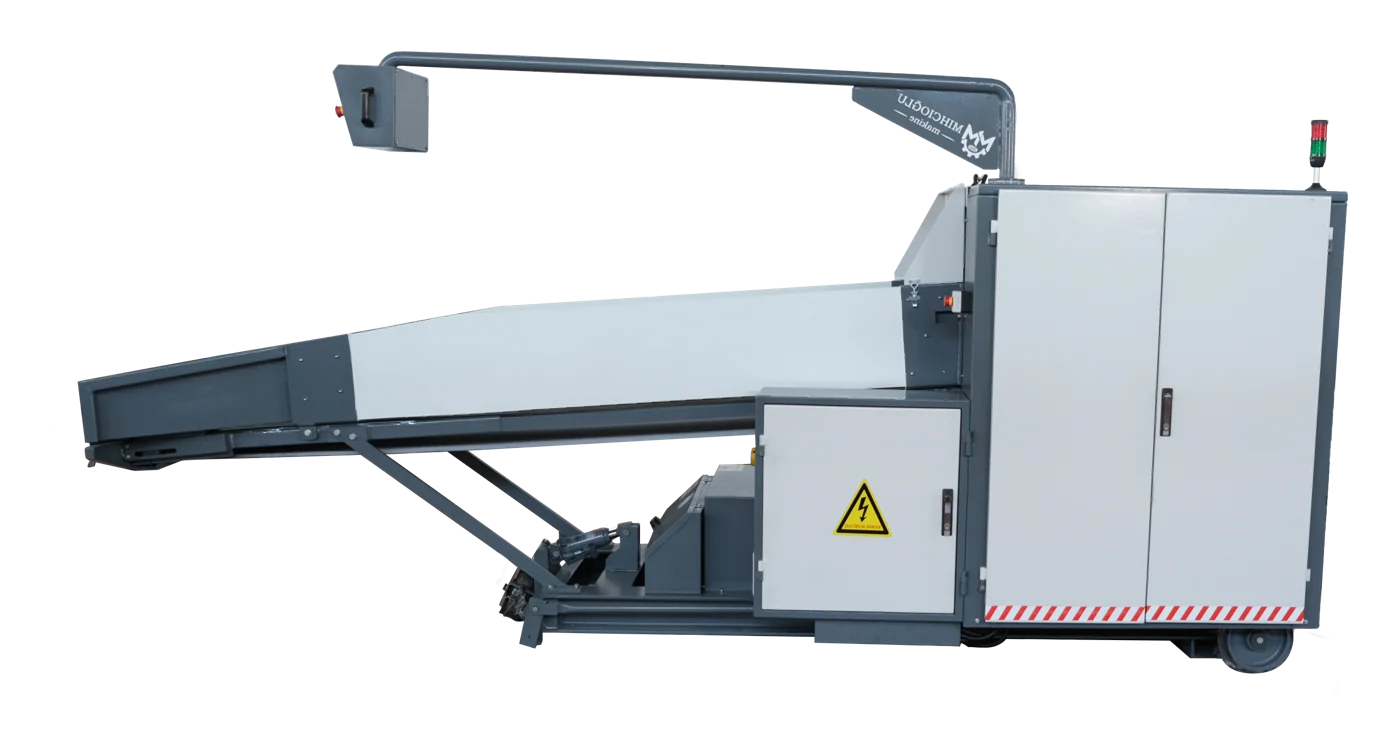

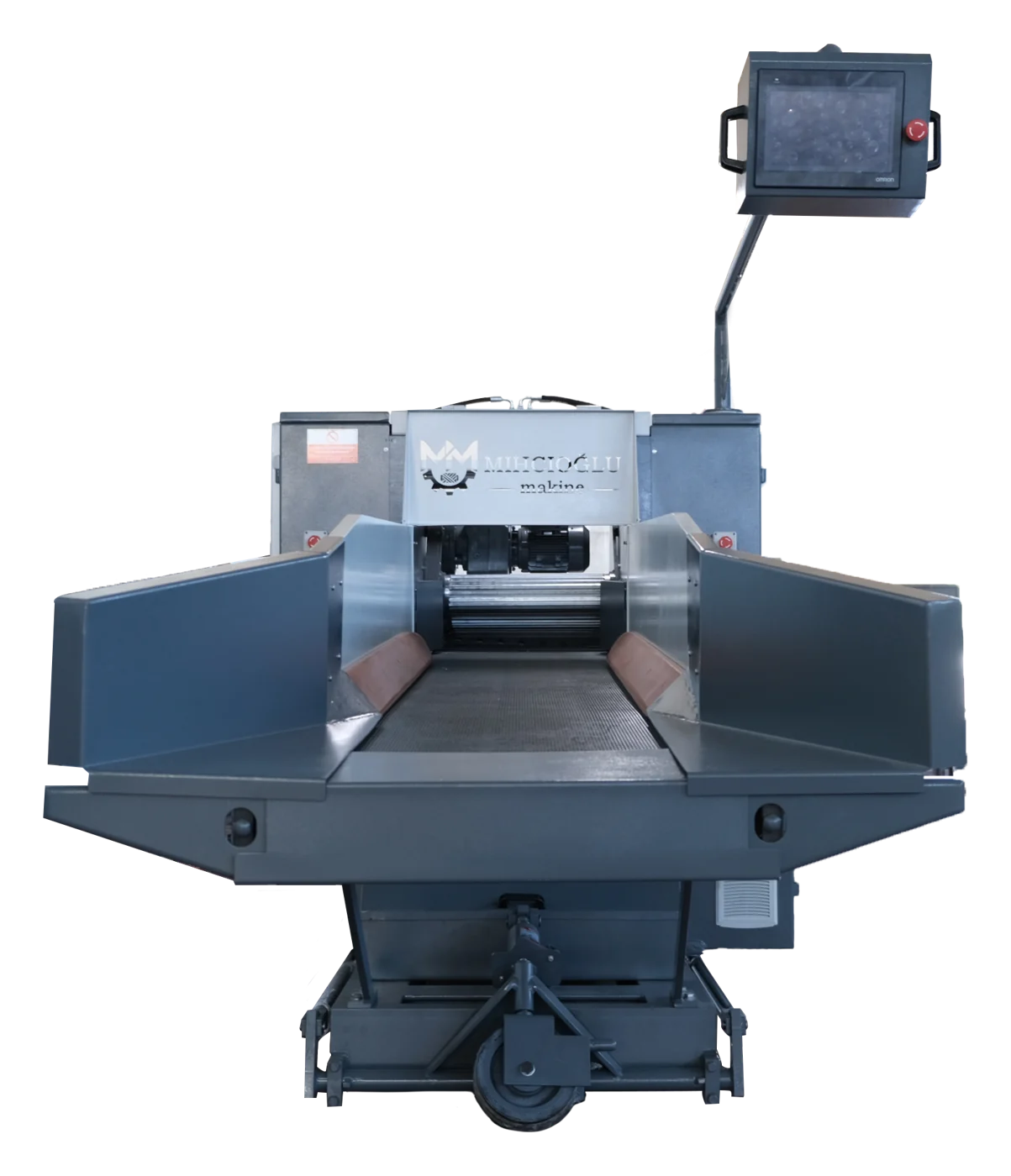

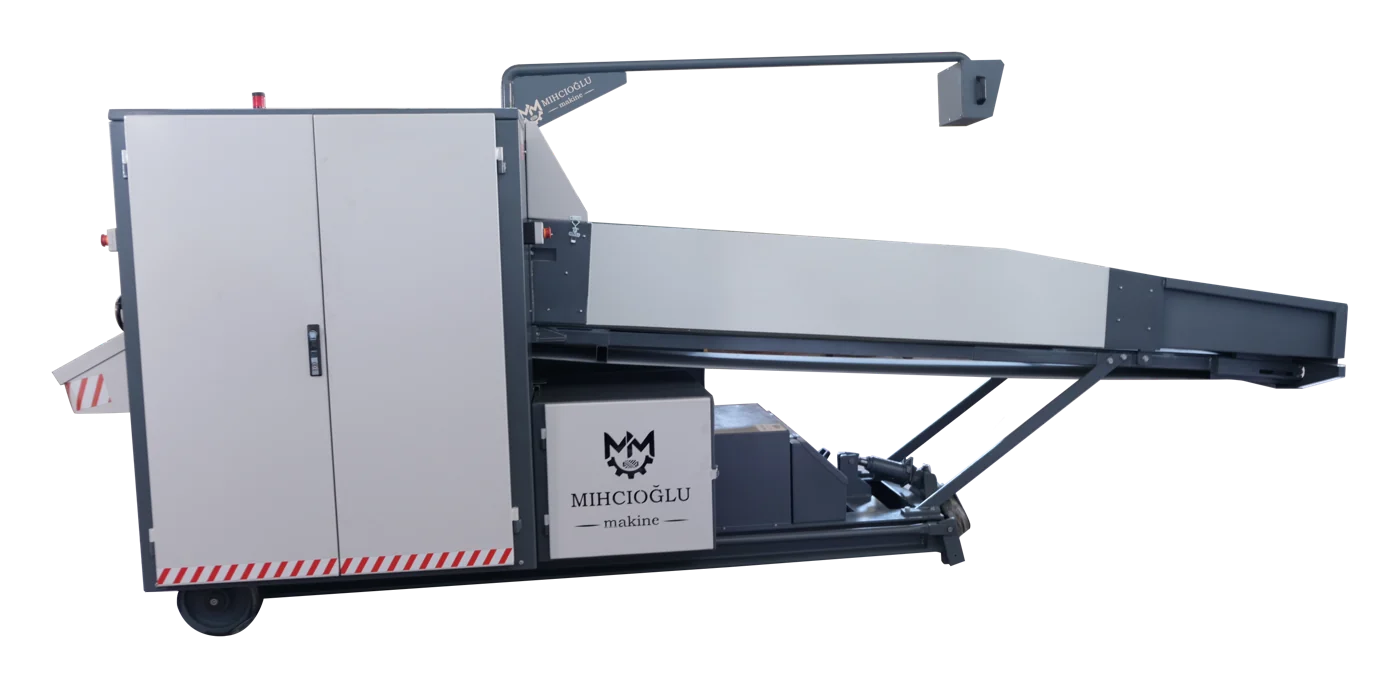

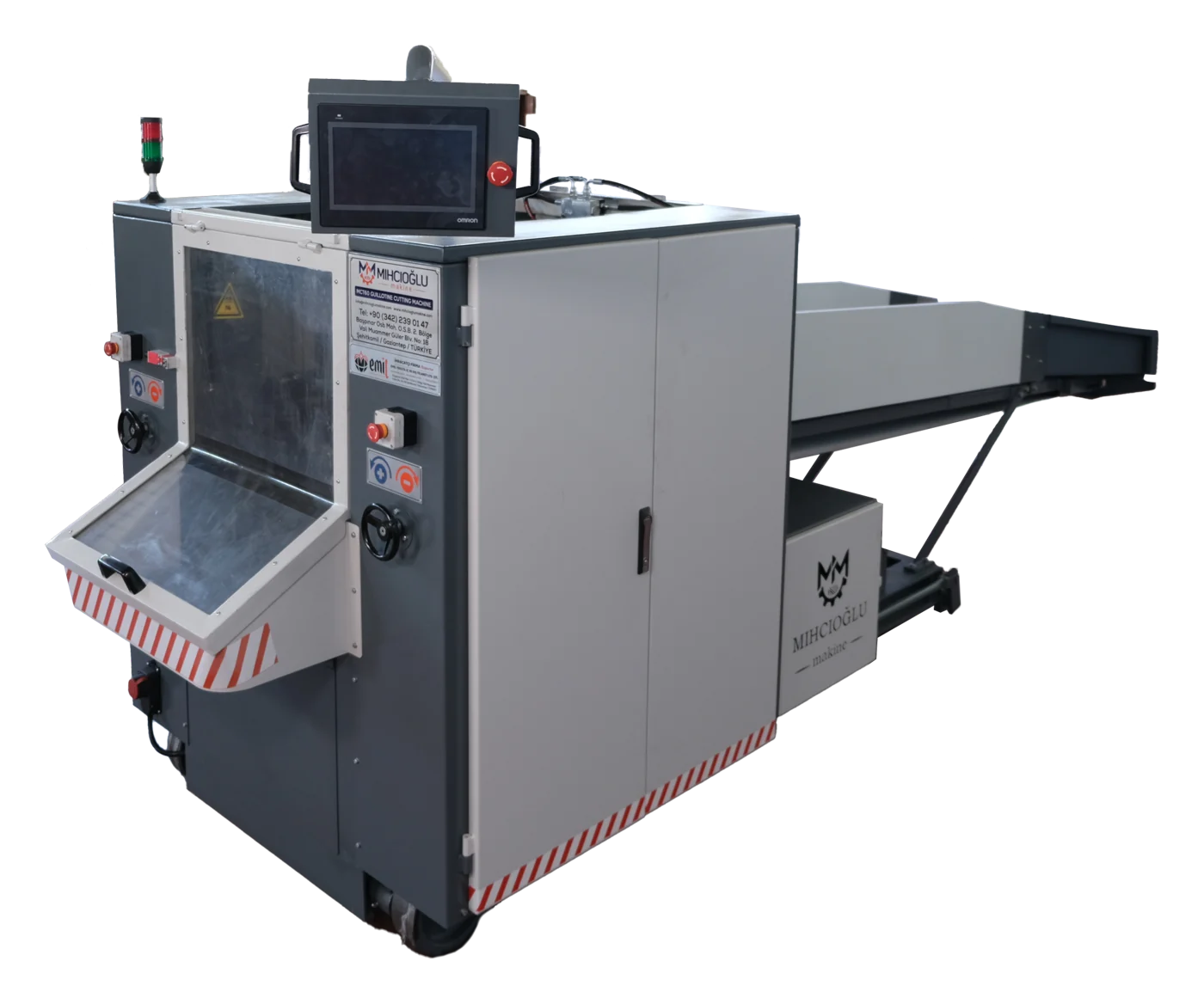

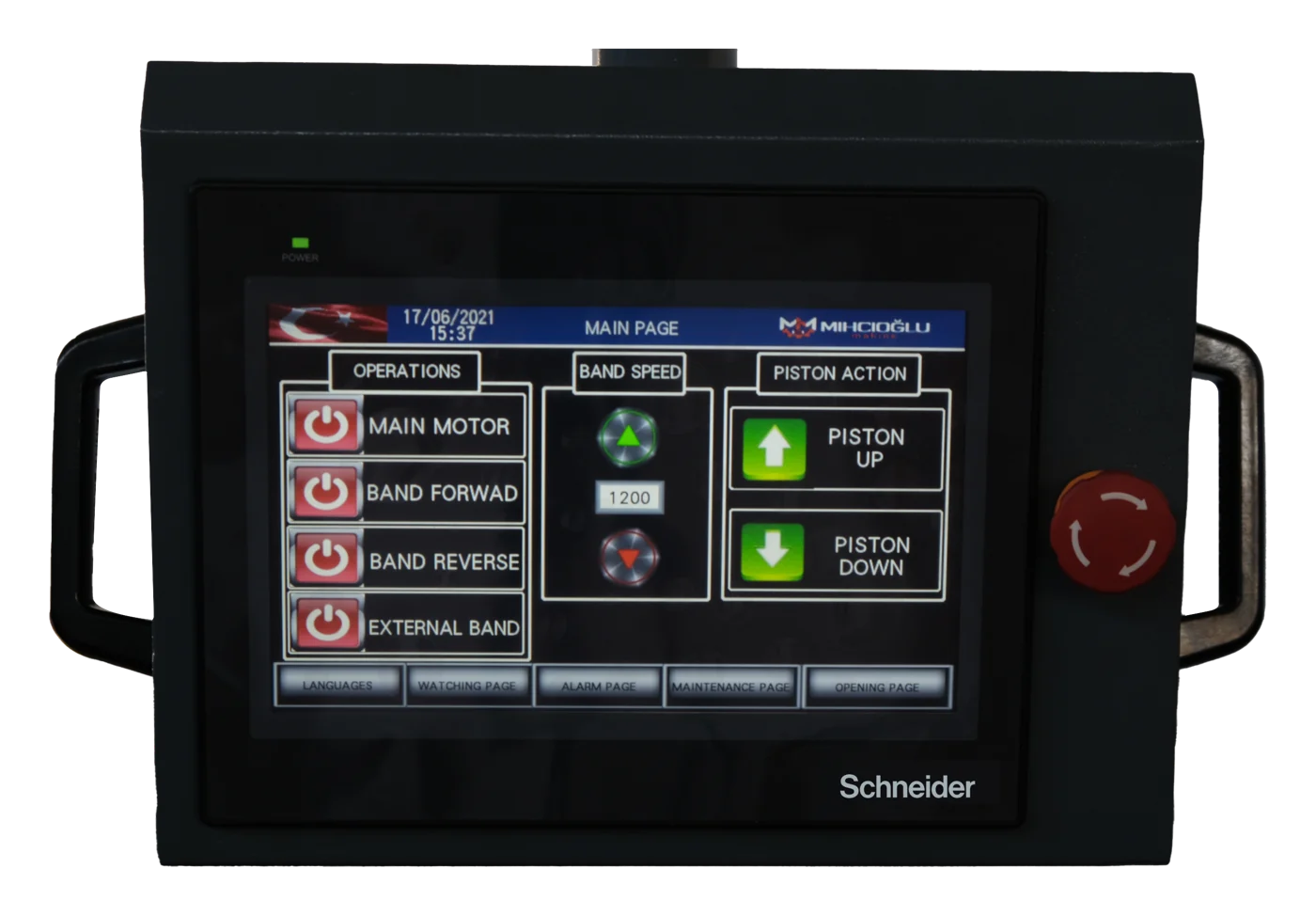

The MCT60 guillotine shearing machine is the newest, high-capacity cutting machine of today. It cuts the materials placed on the conveyor belt to measure, with the cutting length set from its 10-inch control screen.
It cuts with 1 moving and 1 fixed blade driven by an eccentric motion system.
Technical Specifications
| Working Width | 600 mm |
|---|---|
| Total Width | 1470 mm |
| Total Length | 4590 mm |
| Total Height | 1734 mm |
| Cutting Width | 600 mm |
| Cutting Speed | 175-235 rpm |
| Installed Power | 21.5 kW |
| Capacity | 1000-3000 kg/h |
| Net Weight | 3200 kg |
| Cutting Sizes | 5-150 mm |
Application Areas
- Polyester
- Fabric
- Acrylic
- Glass fiber
